Other products
Due to its vast engineering experience, Control Seal can deliver a wide range of products based on customer request.
- Four Way Diverter Valve
- SWIRLValve
- SWGV
- Sampling and Drain valves
- Commodity valves
- PLRV - Pig Launcher and Receiver plug Valve
- Rotary Star Valve
- Angle Choke Valve
Four Way Diverter Valve
Control Seal 4-Way Diverter Valves (4WDV) is used for diverting process flow in two separate directions. The 4WDV zero leakage valve does not rely on line pressure for sealing. The soft seals are extremely resilient elastomers and are part of the slips. The sealing mechanism is based upon a radial movement only. The sealing is not liable to shear, friction or tearing.
Size |
1” ~ 24” (DN25 ~ DN600) |
Bore |
Reduced or Full (Full is piggable) |
Pressure |
150# ~ 900# (PN20 ~ PN150) |
Temperature Range |
-196°C ~ 250°C |
Materials & Connections |
Wide choice on request |
Control Seal 4-way Diverter Valve has been developed for the very strict requirements of bi-directional metering skids.
The 4-Way Diverter Valve has the following characteristics:
FREQUENT OPERATION, allowing the valve to open and close many times a day
RAPID OPERATION, allowing the valve to open and close fast
ZERO LEAKAGE
Applications
Meter skids, Meter proving, Transmission and storage, Custody transfer, Refining, Airports
Design |
API 6D, ASME B16.34 |
Face to Face dimensions |
API 6D |
Flanges |
ASME B16.5 |
Testing |
API 598, API6D, ISO 5208 |
Topworks |
ISO 5210 |
SWIRLValve
Control Seal can deliver SwirlValve, special execution of the Axial Flow Valve that is used in combination with separator as a complete solution (SwirlSep) for efficient separation.
The SWIRLValve is a Joule-Thompson (JT) valve, which reduces carry over.
The SWIRLValve can be applied where the (JT) LTS separator is undersized.
The SWIRLValve can be applied to decrease the JT valve pressure drop.
The SWIRLValve can also be applied for reducing glycol/chemical inhibition liquid mist carry-over problems.
The SwirlSep can be applied for:
Gas-Liquid separation
Liquid degassing
Oil-water separation
Water-oil separation
Sand/ dust removal
SWGV
Spreading Wedge Gate Valve is Control Seal name for its double expanding gate valve. Tight shut off is achieved by two sealing surfaces of the wedge assembly that are being retracted from the body seats before start of the wedge assembly lifting.
Sampling and Drain valves
Control Seal produces the following Sampling and Drain valves:
Sampling valve piston type
Tank Bottom Drain valve
Ram Type Drain valve
Flush Bottom valve
Please contact sales team for more details.
Commodity valves

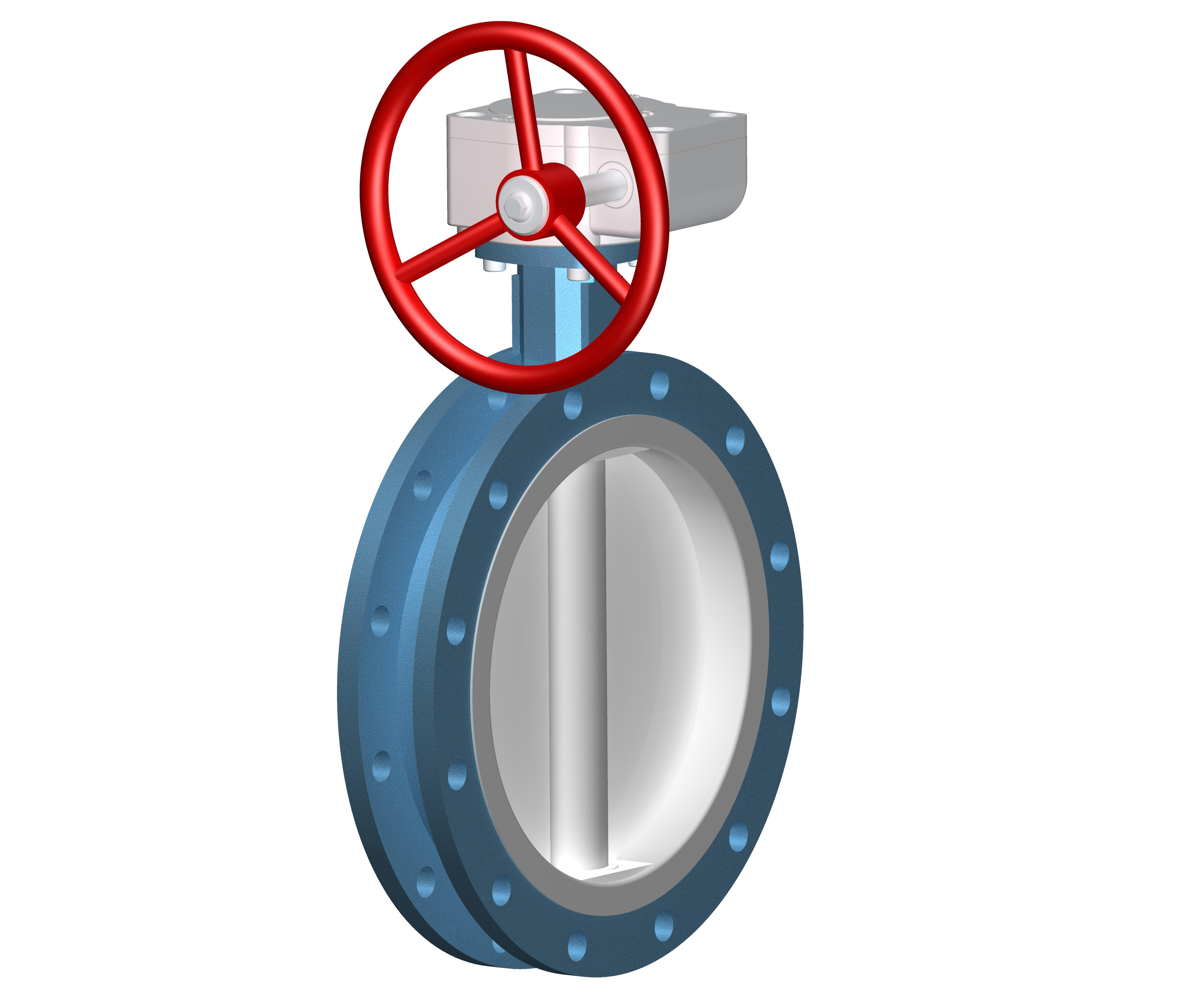

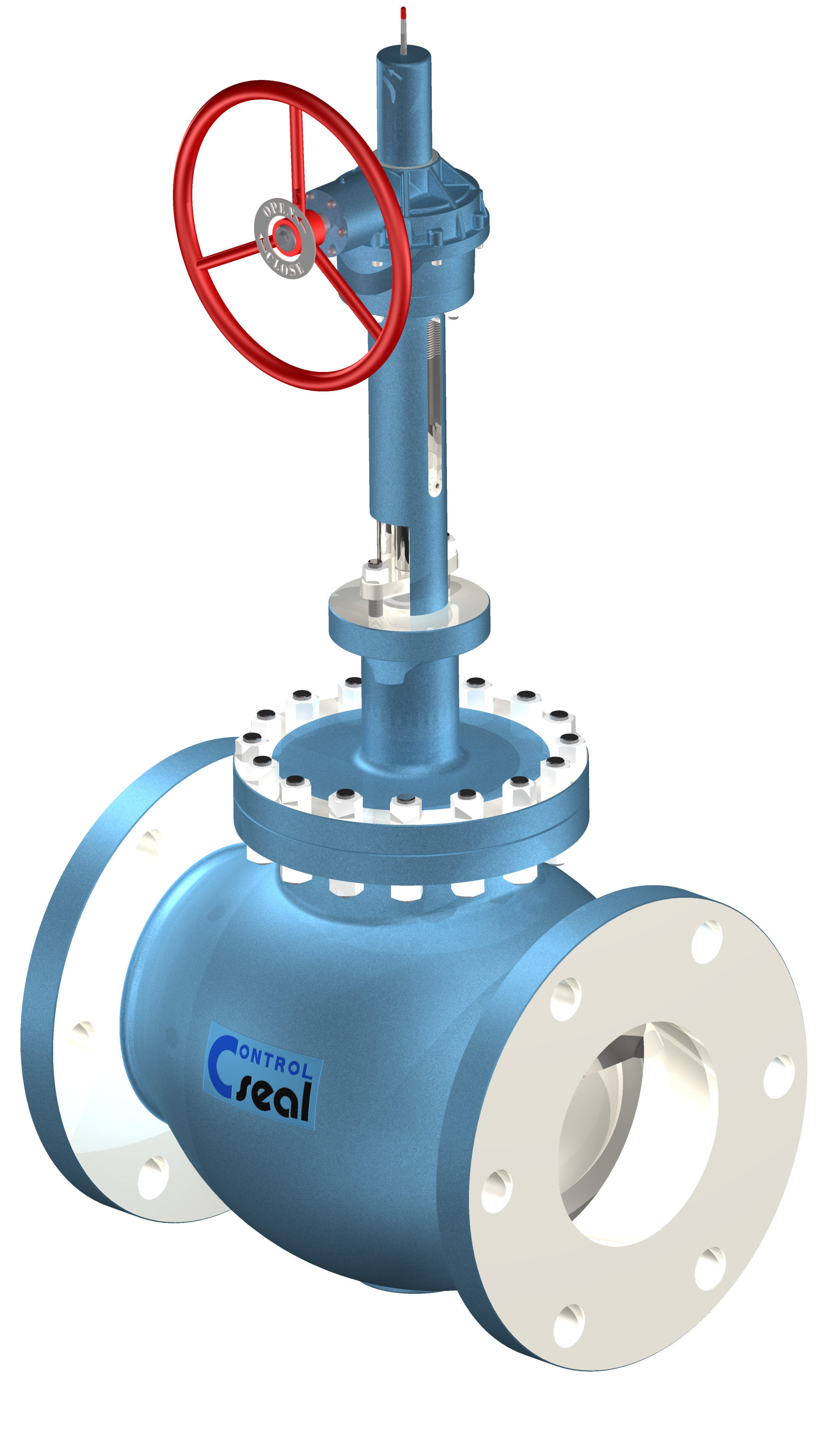

Control Seal has over 30 years history of valves trading. Control Seal can deliver Ball Valves, Gate Valves, Check Valves, Safety Valves, Plug Valves, Butterfly Valves, Globe Valves and other commodity valves as per client requirement.
PLRV - Pig Launcher and Receiver plug Valve
Control Seal produces special type of Pig Launcher and Receiver valve - plug type. The design principle of the valve is derived from dual expanding Double Block and Bleed plug Valve and has benefits over the standard ball type.
Slips are being retracted from the body sealing areas before rotation of the valve internals, hence there is no contact between soft seals and body sealing areas during internals rotation leading to longer life and longer perfect sealing of the valve.
APPLICATIONS:
Tank Storage Facilities - loading and unloading lines
Gas Gathering Systems
Mainline Pipeline
Oil & Gas Transmissions
Control Seal manufacturs Pig Launcher/Receiver Valves from 2” up to 42” and from 150lbs up to 1500lbs.
BENEFITS:
No need for extensive line flushing
Extracting leftover product from pipeline
Quicker product changeover
Rotary Star Valve
Control Seal can produce tailor-made Rotary Star Valves.
Angle Choke Valve
Angle Choke Valves are designed to meet the challenge of choking condition and have the following characteristics:
HIGH PRESSURE DROP due to angle elbow shape of the body
Efficient pressure control with SMALL TRIM
BODY SHAPE to optimize the flow through the valve to minimize erosion in the body and trim
PRESSURE BALANCED TRIM allowing to use small size actuator
INTERCHANGEABLE TRIM allowing to meet changed process conditions easily
EASY MAINTENANCE, light weight trim parts
APPLICATIONS:
Oil production Start-up / Shutdown
Gas & Condensate production
Gas Lift
Well testing
Choke and Kill manifolds
Multi-Phase flows
Pump Discharge
Fracturing Clean-up
Flaring
Control Seal has a UNIQUE DESIGN OF ITS PRODUCTS, SHORT LEAD TIME, COMPETITIVE PRICING AND EXCELLENT AFTER-SALES SUPPORT.
Control Seal Angle Choke Valves were designed for easy interchangeability of trim - with easy top entry access. Low torque operation is secured in its compact design.
Selection of the model is performed based on the application.

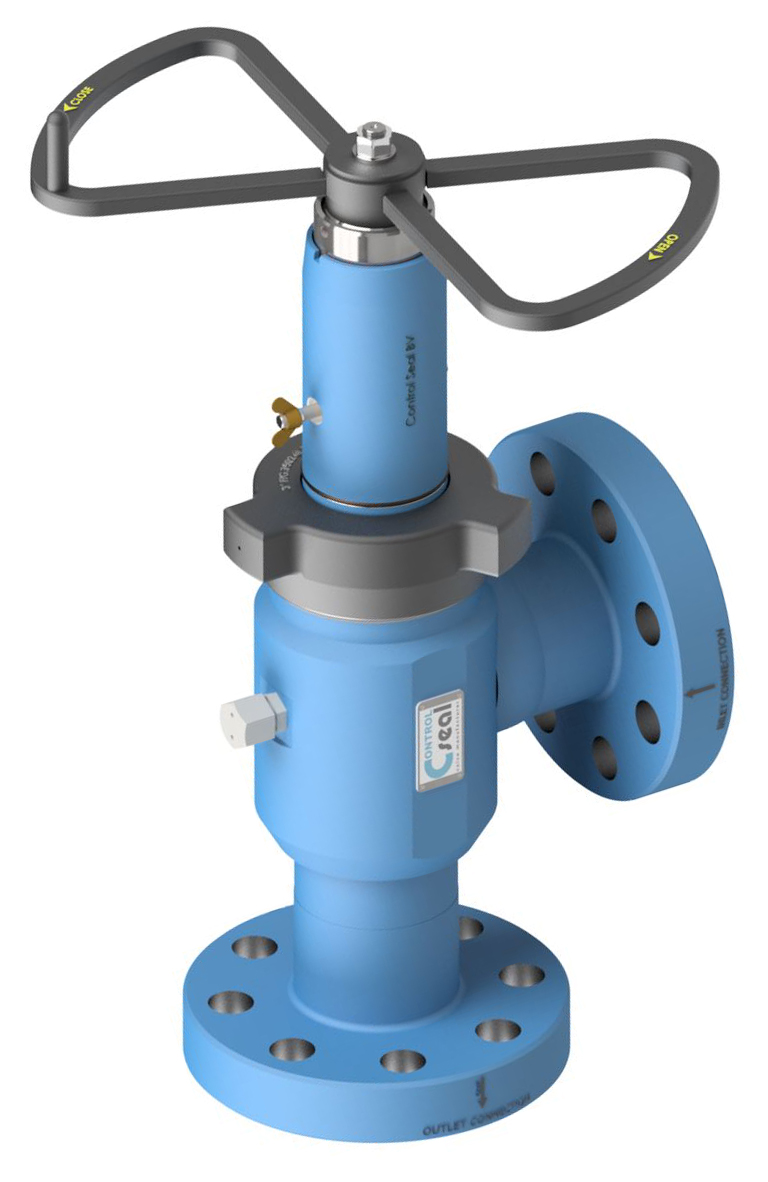

ACHV NEEDLE TYPE
For Start-up and cleaning processes
Medium:
Oil & Hydrocarbons
Water injection
Cementing
ACHV PLUG & CAGE TYPE
For production processes
Medium:
Oil & Hydrocarbons
Multi-Phase
ACHV MULTI-STAGE TYPE
For high pressure drop gas applications and attenuation of noise
Medium:
Hydrocarbons
Design |
EN: ISO10423:2010, ASME B16.34,API 6A |
Face to Face dimensions |
ISO10423:2010, custom |
Flanges |
ISO 10423:2010, API 6A
|
Fire Safe |
ISO 10423:2010, API 6FA |
Fugitive Emission |
ISO 15848, TÜV |
Testing |
ISO 10423:2010, API 6A, FCI 70.2 ANSI/ISA S75.01-2007 & IEC |
Sizing |
60534-8-3:2010 |
